Link Preview Field

A Filament URL field with Open Graph previews, shared FLEX inputs, cached metadata and protected image delivery.

Enter a URL and show its page title, description and image without leaving your form. Link Preview uses the same input shell, sizes and appearance as Flex Text Input. The database stores the URL, not downloaded HTML or preview images.

Three preview layouts

Choose a compact horizontal preview, a vertical preview or a full-width image card.

Responsive loading

Requests run after input changes. Cached previews can appear on the first render without a remote request.

First field

use Bjanczak\FilamentFlexFields\Filament\Forms\Components\LinkPreviewField;

LinkPreviewField::make('website')
    ->label('Website')
    ->required();

Publish the package assets as described in Installation. Authenticated routes are registered automatically from the component definition. No queue worker or additional frontend build is required for previews.

Layout and appearance

Horizontal

LinkPreviewField::make('article_url')
    ->previewLayout('horizontal')
    ->size('md');

The image sits beside the title, description and domain.

Vertical

LinkPreviewField::make('reference_url')
    ->previewLayout('vertical')
    ->variant('secondary');

A compact image card shows the title and domain beneath the image.

Image card

LinkPreviewField::make('campaign_url')

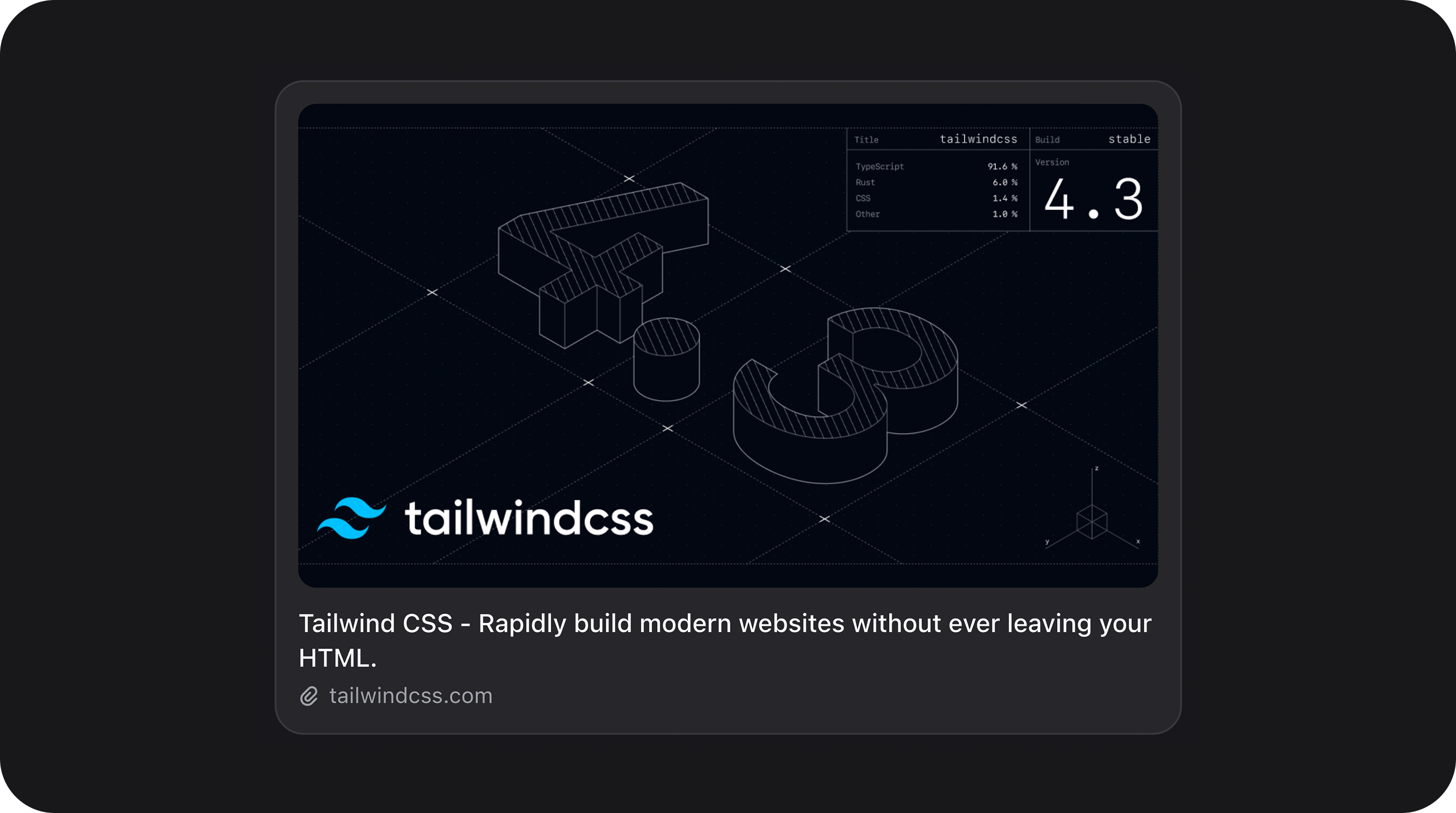

    ->previewLayout('card')
    ->columnSpanFull();

The image spans the preview width; the title and domain follow below it.

Every field option

Fluent options accept closures for values that depend on the record or form.

Method	Default	Behavior
variant()	primary	primary, secondary, soft, flat, or ghost; shared input appearance.
size()	md	sm, md, lg, or a ControlSize enum.
rounding()	Global field setting	Shared FLEX input rounding token. See Configuration.
focusOutline()	true	Shows the shared Flex Text Input outline around the whole input on focus. Use focusOutline(false) to disable it.
placeholder()	Translated URL prompt	Placeholder for the editable portion of the URL.
prefix()	null	Visible URL prefix; added to the entered value and stored as part of the URL.
suffix()	null	Visual suffix label; it is not appended to the stored URL.
preview()	true	false disables the card and all preview requests for this instance. URL validation remains active.
previewLayout()	horizontal	horizontal, vertical, or card.
previewDebounce()	500	Wait after typing, in milliseconds; 0–60000.
previewMinUrlLength()	10	Minimum full URL length before fetching; 4–2048.
previewMinSkeletonMs()	500	Minimum loading presentation for a new successful fetch; 0–5000. Cached previews skip this delay.
resolveInitialPreviewOnServer()	true	Reads existing cached metadata only during rendering. It never performs DNS or HTTP requests. false leaves the initial lookup to the browser.
showVisitLink()	true	Makes the domain a link opening in a new tab. false shows plain text.
visitLabel()	Translated “Visit” label	Accessible label of the domain link.
visitIcon()	FlexIcon::Paperclip	Filament-compatible icon name, enum, HTML or null.
readOnly()	false	Prevents editing; permits the current URL’s preview.
disabled()	false	Prevents editing and new metadata requests. Existing cached previews may still display and load their image. Native Filament disabled/dehydration behavior applies.

Standard Filament methods such as label(), helperText(), required(), live(), afterStateUpdated() and columnSpanFull() remain available.

Practical examples

Enter only a path

LinkPreviewField::make('campaign_url')
    ->prefix('https://example.com/campaigns/')
    ->placeholder('summer-sale')
    ->helperText('Enter the campaign path. The full URL is saved.');

Pasting a full matching URL removes the duplicated visible prefix.

Smaller input, quieter preview

LinkPreviewField::make('reference_url')
    ->size('sm')
    ->variant('soft')
    ->previewDebounce(800)
    ->previewMinSkeletonMs(300)
    ->showVisitLink(false);

URL input without remote requests

LinkPreviewField::make('internal_url')
    ->preview(false)
    ->placeholder('https://intranet.example.com/help');

A valid private URL may be stored. Private hosts cannot be fetched for previews.

Read-only record

LinkPreviewField::make('submitted_url')
    ->readOnly()
    ->previewLayout('vertical')
    ->visitLabel('Open submitted page');

React to URL changes

use Filament\Schemas\Components\Utilities\Set;

LinkPreviewField::make('source_url')
    ->live(debounce: 500)
    ->afterStateUpdated(function (?string $state, Set $set): void {
        $set('source_domain', filled($state)
            ? parse_url($state, PHP_URL_HOST)
            : null);
    });

Preview debounce and Livewire update debounce are independent settings.

Validation and storage

The server validates a nullable string of at most 2048 characters, with an HTTP or HTTPS scheme, no embedded credentials, and the default HTTP/HTTPS port. Arrays, arbitrary text, javascript: URLs and unsupported ports are rejected. required() makes empty values invalid. Whitespace is trimmed; empty values save as null.

A preview failure does not make an otherwise valid URL unsaveable. Pages may omit metadata, block automated requests, require a login, or exceed the download limit.

// Migration: use a suitable length for the URLs you accept.
$table->string('website', 2048)->nullable();

// Field: add a shorter application-specific constraint if necessary.
LinkPreviewField::make('website')
    ->required()
    ->rules(['max:500']);

No model cast is required. Authorization to edit the record remains your application’s responsibility.

Global configuration

In config/filament-flex-fields.php, configure link_preview:

Key	Default	Meaning
cache_ttl_seconds	86400	Metadata cache lifetime; clamped to 0–604800. 0 disables persistence. Empty results cache for at most 30 seconds.
rate_limit_per_minute	30	Per authenticated user, separately for metadata and images; clamped to 1–600. A value of 0 does not disable protection.
timeout_seconds	8	HTTP/DNS allowance tracked across redirects; clamped to 1–15 seconds. Native OS DNS can exceed it; isolated DNS is bounded separately.
dns_strategy	auto	auto uses isolated DNS on macOS PHP-FPM and native DNS elsewhere. isolated uses a fresh PHP CLI process with a two-second deadline; native uses the OS resolver directly.
route_prefix	flex-fields	Prefix of the metadata and image endpoints. Rebuild your Laravel route cache after changing it.
middleware	['web', 'auth']	Middleware for both endpoints. Use auth:your-guard for a custom guard. Authentication cannot be removed. The image route always also requires a relative URL signature.

'link_preview' => [
    'cache_ttl_seconds' => 43200,
    'rate_limit_per_minute' => 30,
    'timeout_seconds' => 8,
    'dns_strategy' => 'auto',
    'route_prefix' => 'flex-fields',
    'middleware' => ['web', 'auth:admin'],
],

Named routes: filament-flex-fields.url-meta.scrape and filament-flex-fields.url-meta.image. Use route names rather than hardcoded paths. The Laravel cache store must support atomic locks. Shared production cache also shares rate limits and metadata across application instances.

Loading and safety

• CSS and JS belong to each rendered field’s asset boundary; closed tabs and modals wait for activation.
• Requests for the same URL and endpoint share in-flight work and a bounded browser cache.
• Changing the URL cancels the previous request; stale responses cannot replace the new preview.
• Removing the field releases its watchers, listeners, timers and pending image work.
• The server checks every redirect destination, rejects private/reserved addresses and pins DNS for the connection.
• Remote requests carry no application session cookies or authorization headers.
• Metadata transfers stop after the HTML head, or at the 256 KiB capture limit. Comments, script text and quoted attributes cannot masquerade as the head boundary. Redirect bodies are skipped. Image responses are limited to 2 MiB.
• Preview images use a short-lived signed local URL, stable within a five-minute interval so shared images can use the browser cache. The image endpoint revalidates redirects, accepts only supported raster images, and caps dimensions at 8 Mi pixels. SVG and HTML are rejected.

Metadata selection

The parser reads a bounded HTML head without executing scripts or downloading linked structured-data documents. Title selection uses Open Graph, Twitter, HTML title and then JSON-LD. Description selection uses Open Graph, Twitter, standard description/abstract tags and then JSON-LD.

Image selection preserves the first usable Open Graph image group, prefers its secure alternate, then tries subsequent groups, Twitter, image metadata, JSON-LD and supported link declarations. Empty, malformed and syntactically private image candidates do not prevent trying a later candidate. Network availability and actual raster safety are checked by the protected image endpoint.

JSON-LD supports WebPage, Article, NewsArticle, BlogPosting, Product and VideoObject, including @graph, image objects and image lists. Up to 16 scripts of 64 KiB each are examined with bounded graph traversal; malformed JSON is ignored. Body-only metadata and client-rendered metadata are not evaluated. Declared Windows-1252/ISO-8859-1 text is converted before extraction.

Open Graph image ordering follows the Open Graph protocol.

Cache and concurrent requests

Server and browser metadata caches ignore URL fragments and preserve query parameters. Cache hits avoid both DNS and remote HTTP. If another worker is already fetching the same URL, the endpoint can return 503 with Retry-After; the browser performs at most four bounded retries, cancelling them when the field is removed or its value changes. The browser cache holds at most 64 entries for five minutes and separates endpoints. Server cache TTL remains configurable.

Isolated DNS uses the matching PHP CLI executable and requires proc_open. It does not use a third-party DNS-over-HTTPS service. Missing CLI/process support, malformed DNS output, mixed private/public answers and failed lookups fail closed. On other platforms, choose isolated when your deployment needs a hard DNS process deadline; verify CLI availability as part of deployment.

The preview card announces updates politely; failures use an accessible alert. Input styling supports light/dark themes and logical text alignment for RTL.

Troubleshooting

The URL saves but there is no preview

Check that the destination is public and serves HTML with title/Open Graph/Twitter metadata. Private addresses, authenticated pages and oversized responses cannot be previewed. A URL can remain valid for storage even when no preview is available.

Requests return 401 or 403

Verify the configured authentication guard and logged-in session. Image URLs expire within five to ten minutes; requesting fresh metadata creates a new signature. Do not remove signing or authentication middleware.

Requests return 429

The user’s request limit was reached. Wait for the period indicated by the response’s Retry-After header, or configure an appropriate bounded limit.

The endpoints return 404 after deployment

Ensure the package provider is discovered and refresh the Laravel route cache after updating the package or endpoint configuration. Publish current assets so browser requests use the current route names.

See custom component routes to declare protected endpoints for your own extension, or try the Link Preview page in the live playground.
