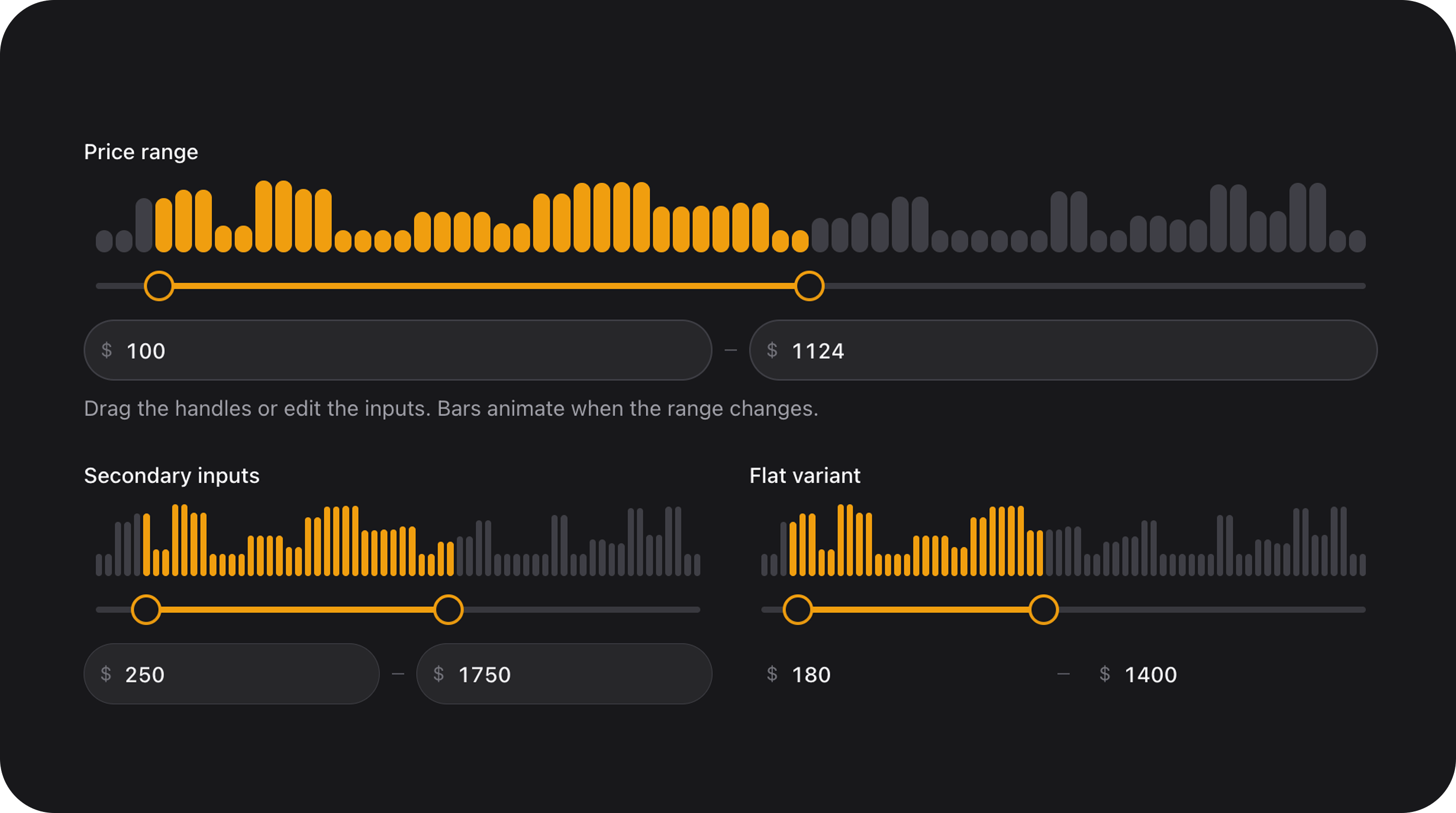

PriceRangeField

Choose a price or budget range with two handles, an animated histogram and shared FLEX text inputs.

Select a minimum and maximum price by dragging two handles or entering exact amounts. Use the histogram to show a price distribution, compare budgets or build catalog filters.

Precise amounts

Integer or decimal amounts, currency prefixes and a configurable step.

Shared input design

The same input presentation, sizes, rounding and appearance variants as Flex Text Input.

Quick example

use Bjanczak\FilamentFlexFields\Filament\Forms\Components\PriceRangeField;

PriceRangeField::make('budget')
    ->label('Budget')
    ->min(0)
    ->max(5000)
    ->step(10)
    ->prefix('$')
    ->default(['min' => 100, 'max' => 2000]);

The value is ['min' => 100, 'max' => 2000]. Without an explicit default, a new field starts with its full configured range. An optional field may also store null.

Bounds, steps and decimal amounts

min() and max() must be finite numbers, with the maximum greater than the minimum. step() must be positive. Steps start at the configured minimum; for min(5)->step(10), valid values include 5, 15 and 25. The maximum endpoint remains selectable even when the last step is shorter.

Integer mode is enabled by default and requires integer bounds and steps. Disable it for cents or other fractions:

PriceRangeField::make('hourly_budget')
    ->min(1.25)
    ->max(250.25)
    ->step(0.25)
    ->integer(false)
    ->decimalPlaces(2)
    ->prefix('€')
    ->default(['min' => 25.50, 'max' => 100.75]);

decimalPlaces() accepts 0–10 or null. Your precision must represent the configured bounds and step. Without a fixed precision, snapping supports up to ten decimal places. Numeric values must remain within JavaScript’s safe numeric range; do not use this field for arbitrary-precision monetary calculations.

locale() formats the accessible value announcement. The editable native number inputs retain their browser’s numeric editing behavior; the stored value always contains numbers, without currency symbols or grouping separators.

PriceRangeField::make('budget')
    ->min(0)
    ->max(5000)
    ->prefix('€')
    ->locale('de-DE');

Input appearance

Variants

PriceRangeField::make('standard')->variant('primary');
PriceRangeField::make('subtle')->variant('secondary');
PriceRangeField::make('minimal')->variant('flat');

primary uses the standard bordered input, secondary uses the shared secondary background, and flat removes the input chrome. Legacy bordered and faded names map to primary and secondary.

Sizes and rounding

PriceRangeField::make('compact')->size('sm');
PriceRangeField::make('regular')->size('md');
PriceRangeField::make('large')->size('lg');

PriceRangeField::make('rounded')
    ->rounding('full')
    ->focusOutline();

Sizes accept sm, md, lg or the corresponding ControlSize enum. rounding() accepts native, md, lg and full. The shared whole-input focus outline is enabled by default; use focusOutline(false) to disable it. Keyboard focus remains visible on slider handles.

Labels and prefixes

PriceRangeField::make('monthly_budget')
    ->prefix('$')
    ->minInputLabel('Minimum monthly budget')
    ->maxInputLabel('Maximum monthly budget');

PriceRangeField::make('plain_budget')->withoutPrefix();

The default prefix is null. Input labels default to translated “Min price” and “Max price” and also label the slider handles for assistive technology.

Histogram

Supply a list of heights. Heights are clamped to 8–100, with at most 1024 source bars. Invalid shapes and nonfinite heights are rejected. CSS container queries choose the displayed density from the available width, in groups of eight bars and up to 128 visible bars. Each density resamples the whole source distribution. This works before JavaScript starts and on resize, so activation does not change bar thickness.

PriceRangeField::make('budget')
    ->min(0)
    ->max(3000)
    ->histogram([12, 24, 38, 66, 90, 100, 85, 62, 40, 18]);

An empty list selects the default 32-height histogram. Each position represents an equal interval across the configured range; pass heights derived from your price buckets, rather than raw product prices.

PriceRangeField::make('budget')
    ->histogram(fn (): array => $priceBucketHeights);

Slider without amount inputs

PriceRangeField::make('budget')
    ->prefix('€')
    ->showInputs(false);

Handles retain keyboard controls and currency-aware announcements. The input presentation stylesheet is requested only by instances that render amount inputs, and is shared with other FLEX inputs on the page. The standalone Flex Text Input JavaScript factory is not required by Price Range.

Editing and events

• Dragging previews the range locally and commits one complete min/max pair on release.
• Handles cannot pass one another. Typing a minimum above the maximum raises the maximum; typing a maximum below the minimum lowers the minimum.
• Amounts commit on change, blur or Enter. This lets users finish typing before snapping and updating the range.
• Escape, pointer cancellation, loss of pointer capture or window focus cancels an unfinished drag.
• Arrow keys change one step; Shift multiplies it by ten. Page Up/Down move ten steps. Home/End move toward the available endpoints, respecting the other handle.
• Horizontal arrow keys and handle positions follow RTL direction.
• Reduced-motion preferences disable local transitions.

For server-side reactions, use Filament’s state binding and update hooks:

PriceRangeField::make('budget')
    ->live()
    ->afterStateUpdated(function (?array $state): void {
        // Update dependent filters after a complete range is committed.
    });

The root emits bubbling input events during drag previews and change when a different pair is committed. Both contain { min, max } in event.detail. A preview event does not mean the persisted form state has been committed.

PriceRangeField::make('budget')
    ->extraAttributes([
        'x-on:change' => 'console.log($event.detail.min, $event.detail.max)',
    ]);

Server validation and storage

Submission checks the exact min/max object shape, finite numeric endpoints, configured bounds, integer/decimal policy, step alignment and min <= max. Additional keys, missing endpoints, booleans, nested objects and invalid numeric strings are rejected. Valid numeric strings become numbers. Invalid submitted values are not silently clamped into valid ones.

PriceRangeField::make('budget')
    ->required()
    ->min(0)
    ->max(10000)
    ->step(50);

readOnly() prevents editing but still validates submitted values. For a calculated display that must not be saved, use dehydrated(false). Disabled fields follow Filament’s normal disabled/dehydration policy.

PriceRangeField::make('calculated_budget')
    ->readOnly()
    ->dehydrated(false);

Store the pair in a JSON column with an Eloquent array cast:

protected function casts(): array
{
    return ['budget' => 'array'];
}

When saving a custom form, read its validated state rather than writing an unvalidated public Livewire property:

$data = $this->form->getState();
$record->update($data);

Configuration reference

Configuration methods support closures with Filament utility injection unless noted.

Method	Default	Purpose
min(int|float|Closure)	0	Lower bound.
max(int|float|Closure)	1000	Upper bound.
step(int|float|Closure)	1	Increment relative to the lower bound.
integer(bool|Closure)	true	Require whole-number bounds, step and values.
decimalPlaces(int|Closure|null)	null	Decimal precision, 0–10.
locale(string|Closure|null)	null	Accessible numeric value formatting.
prefix(string|Closure|null)	null	Currency or unit prefix.
withoutPrefix()	—	Clear the prefix; takes no arguments.
variant(string|Closure)	primary	primary, secondary or flat.
size(string|ControlSize|Closure)	md	sm, md or lg.
rounding(string|Closure)	md	native, md, lg or full.
focusOutline(bool|Closure)	true	Whole-input focus outline.
showInputs(bool|Closure)	true	Show editable amounts.
minInputLabel(string|Closure|null)	Translated minimum label	Minimum input and handle label.
maxInputLabel(string|Closure|null)	Translated maximum label	Maximum input and handle label.
histogram(array|Closure)	Default 32 heights	Distribution heights; up to 1024 source bars.
readOnly(bool|Closure)	false	Prevent editing.

Standard Filament methods such as label(), default(), required(), disabled(), rules(), live(), helperText() and columnSpanFull() remain available.

FLEX schema configuration

The schema field type is price_range. Its supported component keys are min, max, step, size, variant, rounding, prefix, histogram, integer, decimal_places, show_inputs, min_input_label, max_input_label, locale, focus_outline and read_only, together with shared schema settings. read_only maps to readOnly() for schema-built fields.
