AudioField - FLEX Fields

Summary

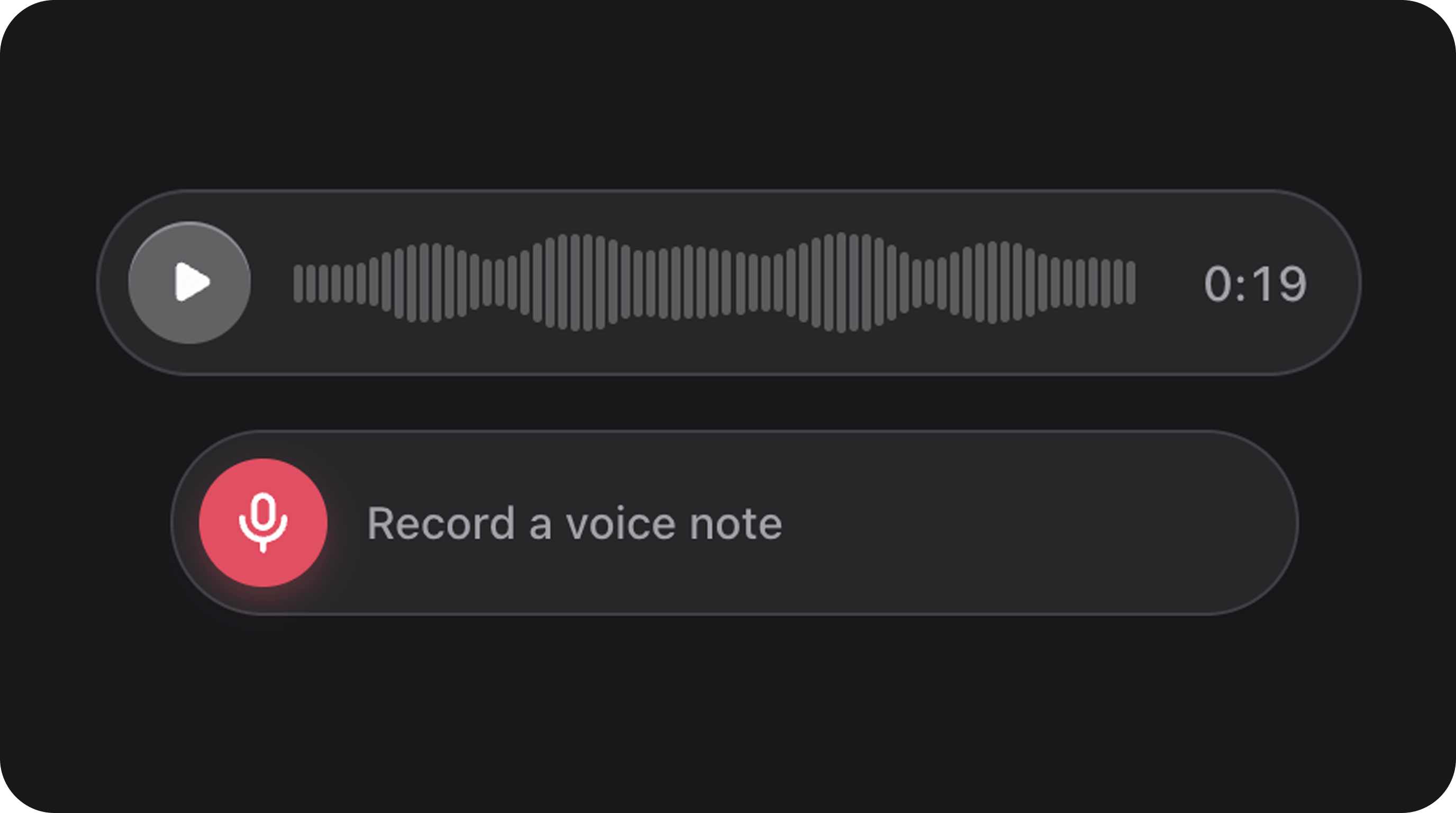

Compact audio player featuring a modern “iMessage-style” voice note pill. Includes waveform visualization, play/pause controls, optional looping, and optional client-side Whisper transcription (inspired by Xenova/whisper-web). State is typically stored as a URL string to the audio file — the transcript is shown in the UI only and is not written back to field state.


Class	`Bjanczak\FilamentFlexFields\Filament\Forms\Components\AudioField`
State type	`string\|null` — audio URL (when not using static `src()`)
FieldType	`audio`
Transcription	Optional — browser Whisper ONNX; requires `php artisan fff:whisper:install`
Playground	`audio-field` slug in Flex Fields playground

Basic usage

Dynamic Audio (from State)

use Bjanczak\FilamentFlexFields\Filament\Forms\Components\AudioField;

AudioField::make('preview_url')
    ->label('Voice message')
    ->fullWidth()
    ->loop();

Static Audio (Fixed Source)

AudioField::make('jingle')
    ->src('/audio/notification.mp3')
    ->waveform([20, 45, 80, 60, 35, 90, 50, 30])
    ->size('lg');

With client-side transcription

AudioField::make('voicemail_url')
    ->label('Voicemail')
    ->transcription()
    ->fullWidth();

Install the Whisper runtime once per app first — see Installing the Whisper runtime. Without it the player still works; Transcribe stays soft-disabled. See Speech-to-text (Whisper) for model, language, and full details.

State & validation

Stored value

State is an HTTP(S) or root-relative audio URL string. URLs containing credentials, control characters or unsafe schemes are rejected. This field plays a URL; it does not upload or store the audio file.

$record->preview_url; // 'https://example.com/audio.mp3'

Validation rules (built-in)

Ensures the state is a valid media URL string.

Configuration API

Methods accept closures as well as the displayed values, unless noted.

Method	Type	Default	Description
`src(string\|Closure\|null $src)`	Setup	`null`	Fixed audio URL (overrides state)
`fullWidth(bool $condition)`	Setup	`false`	Stretch player to container width
`loop(bool $condition)`	Setup	`false`	Loop playback
`waveform(array $waveform)`	Setup	default	List of up to 2048 finite numeric peaks, clamped to `8`–`100`
`playIcon(string $icon)`	Setup	config	Custom play icon
`pauseIcon(string $icon)`	Setup	config	Custom pause icon
`size(string $size)`	Setup	`'md'`	`sm`, `md`, `lg`
`readOnly(bool $condition)`	Setup	`false`	Disable interaction
`rounding(string $rounding)`	Setup	config	Border radius token

Speech-to-text (Whisper)

Enable optional client-side speech-to-text on any AudioField that has a playable audio URL. The Quantized switch selects q8 weights; disabling it selects fp32. Inference uses the WASM backend and does not require WebGPU or cross-origin isolation. Transcription runs entirely in the user’s browser via @huggingface/transformers — no server API key, no upload of audio to your backend for STT.

AudioField::make('voice_message')
    ->label('Voice message')
    ->transcription()
    ->fullWidth();

When transcription is enabled and the Whisper runtime is installed, the field renders:

Transcribe Audio — fetches the audio URL, decodes it with Web Audio, runs Whisper, and shows the result below the player.
Settings (gear) — submenu for model, language, task, Multilingual, and Quantized toggles (same UX pattern as Xenova/whisper-web).

If the runtime is missing, the audio player still works. The Transcribe UI is soft-disabled and the field shows an install CTA with php artisan fff:whisper:install.

Installing the Whisper runtime

The browser ONNX / WASM runtime (~15 MB) is not included in the Composer package and is not published by php artisan filament:assets. Only apps that use ->transcription() need it.

Important: filament:assets syncs Flex Fields CSS/JS and small static media (beeps, NPS emoji, etc.). It never installs Whisper. Use the commands below.

One-time install

php artisan fff:whisper:install

What this does:

Downloads the pinned @huggingface/transformers 4.3.1 browser bundle and its matching ONNX WASM/loader from the jsDelivr npm CDN.
Verifies each file with SHA-256 against the package manifest (WhisperRuntimeManifest).
Writes them to public/filament-flex-fields-assets/whisper/4.3.1/.
Writes public/filament-flex-fields-assets/whisper/4.3.1/.installed.json (version + hashes + timestamp).
Does not install source maps (.map files are excluded on purpose).

After a successful install, hard-refresh the admin panel and use ->transcription() as usual.

Inspect status

php artisan fff:whisper:status

Shows package pin, public directory, whether files are present, and any missing or SHA-256-mismatched files.

CI / deploy gate

When your app requires transcription in production, fail the pipeline if the runtime is missing or corrupt:

php artisan fff:whisper:install --check

Exit code 0 = verified. Exit code 1 = missing or invalid (print includes the fix command).

Re-download

php artisan fff:whisper:install --force

Re-fetches all files even when the current install already verifies. Use after a failed partial download, disk restore, or when upgrading Flex Fields to a release that pins a new transformers version (hashes change — status will report mismatches until you reinstall).

Command reference

Command	Purpose
`php artisan fff:whisper:install`	Download + SHA-256 verify + write `public/.../whisper/4.3.1/`
`php artisan fff:whisper:install --force`	Same, always re-download
`php artisan fff:whisper:install --check`	Verify only (CI); exit `1` if missing/corrupt
`php artisan fff:whisper:status`	Human-readable installed vs expected

Files on disk

Path	Role
`public/filament-flex-fields-assets/whisper/4.3.1/transformers.min.js`	Transformers runtime module
`public/filament-flex-fields-assets/whisper/4.3.1/ort-wasm-simd-threaded.wasm`	ONNX Runtime CPU/WASM binary
`public/filament-flex-fields-assets/whisper/4.3.1/ort-wasm-simd-threaded.mjs`	Matching ONNX module loader
`public/filament-flex-fields-assets/whisper/4.3.1/.installed.json`	Lockfile written by install

The field resolves the installed runtime URLs automatically. Each runtime version has its own directory so cached modules and already-open pages cannot mix different runtime versions. The manifest also pins the matching onnxruntime-web release; its .mjs loader and .wasm file are installed together.

Deploy notes

Run fff:whisper:install on each environment that needs transcription (or copy the verified public/filament-flex-fields-assets/whisper/4.3.1/ directory as a build artifact).
Commit the whisper directory only if your deploy strategy requires it; many teams install during CI/CD instead.
Do not expect composer install or filament:assets alone to restore Whisper after an upgrade.
Upgrading from an older Flex Fields release that bundled Whisper in Composer: remove any stale vendor/public copies from the old layout, then run fff:whisper:install once.

Network requirements for install

The install command needs outbound HTTPS to the jsDelivr npm CDN (cdn.jsdelivr.net/npm/@huggingface/transformers@…). Air-gapped hosts must vendor the verified files into public/filament-flex-fields-assets/whisper/4.3.1/ by another channel, then confirm with fff:whisper:install --check. Install access must allow both the pinned @huggingface/transformers and onnxruntime-web npm packages. Model weights (Hugging Face) are still downloaded in the browser on first Transcribe — that is separate from this artisan install.

Transcript is not field state

The transcript appears in .fff-audio-field__transcript for the current page session. It is not saved to the Eloquent attribute / form state. To persist text, bind a separate field (for example Textarea) or use server-side transcription on VoiceNoteRecorderField via Media OS.

How it works

Step	Behavior
First Transcribe click	Loads the installed Whisper runtime (`transformers.min.js` + ONNX WASM from `fff:whisper:install`), then downloads model weights from Hugging Face
Later clicks (same model + quantized setting)	Reuses in-memory pipeline cache; weights served from browser cache (`useBrowserCache: true`) — no full re-download on page reload
Audio fetch	`fetch()` on the resolved audio URL — must be same-origin or CORS-enabled
Decode	`AudioContext.decodeAudioData()` — stereo is down-mixed to mono
Inference	30 s chunks, 5 s stride; optional language + task when multilingual mode is on

Progress during the first model load shows the downloading file and percentage (for example encoder_model.onnx 42%). Model load times out after 10 minutes — enable Quantized or pick a smaller model on slow connections.

Requirements & limitations

Requirement	Detail
HTTPS	Required for stable Web Audio / WASM in production
CORS	Cross-origin audio URLs must allow browser `fetch` from your admin origin
Whisper runtime	Opt-in host install — see Installing the Whisper runtime
Network (first Transcribe)	Hugging Face CDN must be reachable to download ONNX model weights (browser)
Read-only	Transcribe is disabled when `readOnly()` is true
Empty audio	Shows “No speech detected” when Whisper returns blank text

Configuration API (transcription)

Methods accept closures as well as the displayed values, unless noted.

Method	Type	Default	Description
`transcription(bool\|Closure $condition)`	Setup	`false`	Enable Whisper toolbar + transcript panel
`transcriptionSettings(bool\|Closure $condition)`	Setup	`true`	Show gear menu (model / language / task / toggles)
`whisperModel(string\|Closure\|null $model)`	Setup	config	Hugging Face model id (see catalog below)
`whisperQuantized(bool\|Closure $condition)`	Setup	config (`true`)	Use quantized ONNX weights (smaller download)
`whisperMultilingual(bool\|Closure $condition)`	Setup	`true`	Multilingual models + language/task pickers
`whisperLanguage(string\|Closure\|null $language)`	Setup	`null`	ISO 639-1 hint (`pl`, `en`, …) or auto-detect
`whisperTask(string\|Closure $task)`	Setup	`'transcribe'`	`'transcribe'` or `'translate'` (English output)

Invalid tasks throw InvalidArgumentException at config evaluation time.

Global defaults (`config/filament-flex-fields.php`)

These config keys apply when the matching field method is not set:

Config key	Env variable	Used by
`default_model`	`FLEX_FIELDS_WHISPER_MODEL`	`whisperModel()` fallback — default `Xenova/whisper-tiny`
`default_quantized`	`FLEX_FIELDS_WHISPER_QUANTIZED`	`whisperQuantized()` fallback — default `true`

'audio' => [
    'transcription' => [
        'default_model' => env('FLEX_FIELDS_WHISPER_MODEL', 'Xenova/whisper-tiny'),
        'default_quantized' => env('FLEX_FIELDS_WHISPER_QUANTIZED', true),
        // Reserved for future global defaults:
        'default_multilingual' => env('FLEX_FIELDS_WHISPER_MULTILINGUAL', true),
        'default_language' => env('FLEX_FIELDS_WHISPER_LANGUAGE'),
        'default_task' => env('FLEX_FIELDS_WHISPER_TASK', 'transcribe'),
        'languages' => [],
    ],
],

Field-level defaults when you call ->transcription() without extra methods:

Setting	Default
Multilingual	`true` — set with `whisperMultilingual()`
Language	auto-detect — set with `whisperLanguage('pl')` etc.
Task	`'transcribe'` — set with `whisperTask('translate')`
Settings menu	visible — hide with `transcriptionSettings(false)`

Model catalog & settings toggles

Models and filtering follow whisper-web’s AudioManager:

Model id	Multilingual	Notes
`Xenova/whisper-tiny`	Yes	Default — ~41 MB quantized
`Xenova/whisper-base`	Yes
`Xenova/whisper-small`	Yes
`Xenova/whisper-medium`	Yes	Largest Xenova model in catalog
`distil-whisper/distil-medium.en`	No (English)	Shown when Multilingual is off
`distil-whisper/distil-large-v2`	No (English)	Distil — hidden when Multilingual is on

Toggle	Effect
Multilingual ON	Xenova multilingual models; Language + Task submenus enabled; appends `.en` stripped
Multilingual OFF	English-only variants (`.en` suffix where applicable); distil models available
Quantized ON	Smaller ONNX files (single size in catalog) — recommended default
Quantized OFF	Full-precision weights where the catalog lists two sizes

The settings menu lists models with approximate download size, for example Xenova/whisper-tiny (41 MB). The Language submenu exposes the full Whisper ISO 639-1 catalog (90+ languages plus Auto detect), aligned with whisper-web.

Real-world examples

Polish voice note with fixed language

AudioField::make('support_call')
    ->transcription()
    ->whisperLanguage('pl')
    ->whisperModel('Xenova/whisper-small')
    ->fullWidth();

English-only, quantized distil model

AudioField::make('voicemail')
    ->transcription()
    ->whisperModel('distil-whisper/distil-medium.en')
    ->whisperMultilingual(false)
    ->whisperQuantized(true);

Transcribe button only (no user-facing settings)

AudioField::make('recording')
    ->transcription()
    ->transcriptionSettings(false)
    ->whisperModel('Xenova/whisper-tiny')
    ->whisperQuantized(true);

Translate foreign audio to English

AudioField::make('foreign_clip')
    ->transcription()
    ->whisperTask('translate')
    ->whisperMultilingual(true);

Troubleshooting

Symptom	Likely cause	What to try
Install CTA / Transcribe UI missing though `->transcription()` is set	Whisper runtime not installed on this host	`php artisan fff:whisper:install`, then `fff:whisper:status`, hard refresh
`fff:whisper:install --check` exits `1`	Missing files or SHA-256 mismatch	`fff:whisper:install --force`; confirm deploy includes `public/.../whisper/4.3.1/`
SHA-256 mismatch during install	Truncated download or CDN/proxy tampering	Retry `--force`; allowlist `cdn.jsdelivr.net`; check disk space
”Whisper runtime assets are not configured”	Runtime URLs empty / not installed	`fff:whisper:install` (not `filament:assets` alone)
“Could not fetch the audio file”	CORS or 403 on audio URL	Same-origin URL, signed URL with CORS, or proxy
”This browser cannot decode audio”	Missing / blocked `AudioContext`	HTTPS, supported browser
Model download timeout	Slow network or full (non-quantized) weights	Enable Quantized, use `whisper-tiny`
Stuck on loading after first success	Rare pipeline error	Hard refresh; check browser console
Transcription failed (generic)	ONNX / memory / corrupt audio	Smaller model, shorter clip, check console

User-facing copy is translatable under filament-flex-fields::default.audio.transcription_* in resources/lang.

Real-world examples

Post-Recording Preview

AudioField::make('recorded_audio')
    ->label('Listen to your recording')
    ->live()
    ->visible(fn ($state) => filled($state));

Fixed Demo Track

AudioField::make('demo')
    ->src('https://cdn.example.com/demo.mp3')
    ->readOnly()
    ->waveform(fn () => [30, 70, 45, 90, 55, 40, 75, 50]);

Playground

/admin/flex-fields/audio-field Two sections:

Section	What it demonstrates
Audio player	Sizes, full width, custom waveform
Speech-to-text (Whisper Web)	`->transcription()` demos — requires `fff:whisper:install` on the host; otherwise shows an install CTA

See Playground for setup.

Component	When to use instead
VoiceNoteRecorderField	Record audio from the microphone; server-side transcript via Media Capture OS after upload
VideoField	Full video player with controls
FlexFileUpload	Standard file upload for audio files
FlexTextareaField	Persist transcribed text — pair with `AudioField::transcription()` if you need stored copy

CSS classes (reference)

Class	Role
`fff-audio-field-field`	Root wrapper
`fff-audio-field-field--{sm\|md\|lg}`	Size variant
`fff-audio-field.has-transcription`	Transcription enabled — STT layout tokens
`fff-audio-field__waveform`	Waveform bars container
`fff-audio-field__bar`	Individual waveform bar
`fff-audio-field__play`	Play/pause button
`fff-audio-field__duration`	Time display
`fff-audio-field__stt-toolbar`	Transcribe button + settings gear row
`fff-audio-field__stt-button`	Transcribe Audio control
`fff-audio-field__settings-menu`	Model / language / task submenu popover
`fff-audio-field__stt-status`	Loading / error status line
`fff-audio-field__transcript`	Transcript output container
`fff-audio-field__transcript-text`	Transcript text (`<pre>`)

Keyboard, layout and resource use

Focus the waveform and use Left/Right to seek by five seconds, Home for the beginning and End for the end. Seeking follows RTL direction. The play button supports normal button keyboard activation. Read-only and disabled fields block interaction. The compact player keeps its existing appearance in all three sizes. Waveform bar count adapts to the available width. Provide waveform() when you already have peaks to avoid fetching audio for analysis. Without custom peaks, the initial display uses a deterministic waveform; real analysis is lazy and never delays playback. Automatic analysis skips tracks whose known duration exceeds ten minutes and limits downloads to 32 MB. Only playing audio runs a progress animation. Removing the field stops playback and cancels owned requests, gestures, observers and timers. Inactive tabs and modals use the FLEX activation lifecycle; merely scrolling the field out of view does not stop it. Whisper is optional. Changing the source or removing the field cancels its pending fetch and discards obsolete results. An already running native model inference may continue internally; it cannot update a disposed field. Model weights remain subject to browser caching and memory limits. For long recordings or centralized processing, use a server transcription provider with Voice Note Recorder instead.

​Summary

​Basic usage

​Dynamic Audio (from State)

​Static Audio (Fixed Source)

​With client-side transcription

​State & validation

​Stored value

​Validation rules (built-in)

​Configuration API

​Speech-to-text (Whisper)

​Installing the Whisper runtime

One-time install

Inspect status

CI / deploy gate

Re-download

Command reference

Files on disk

Deploy notes

Network requirements for install

​Transcript is not field state

​How it works

​Requirements & limitations

​Configuration API (transcription)

​Global defaults (config/filament-flex-fields.php)

​Model catalog & settings toggles

​Real-world examples

Polish voice note with fixed language

English-only, quantized distil model

Transcribe button only (no user-facing settings)

Translate foreign audio to English

​Troubleshooting

​Real-world examples

​Post-Recording Preview

​Fixed Demo Track

​Playground

​Related components

​CSS classes (reference)

​Keyboard, layout and resource use

Summary

Basic usage

Dynamic Audio (from State)

Static Audio (Fixed Source)

With client-side transcription

State & validation

Stored value

Validation rules (built-in)

Configuration API

Speech-to-text (Whisper)

Installing the Whisper runtime

Transcript is not field state

How it works

Requirements & limitations

Configuration API (transcription)

Global defaults (`config/filament-flex-fields.php`)

Model catalog & settings toggles

Real-world examples

Troubleshooting

Real-world examples

Post-Recording Preview

Fixed Demo Track

Playground

Related components

CSS classes (reference)

Keyboard, layout and resource use
