SignatureField

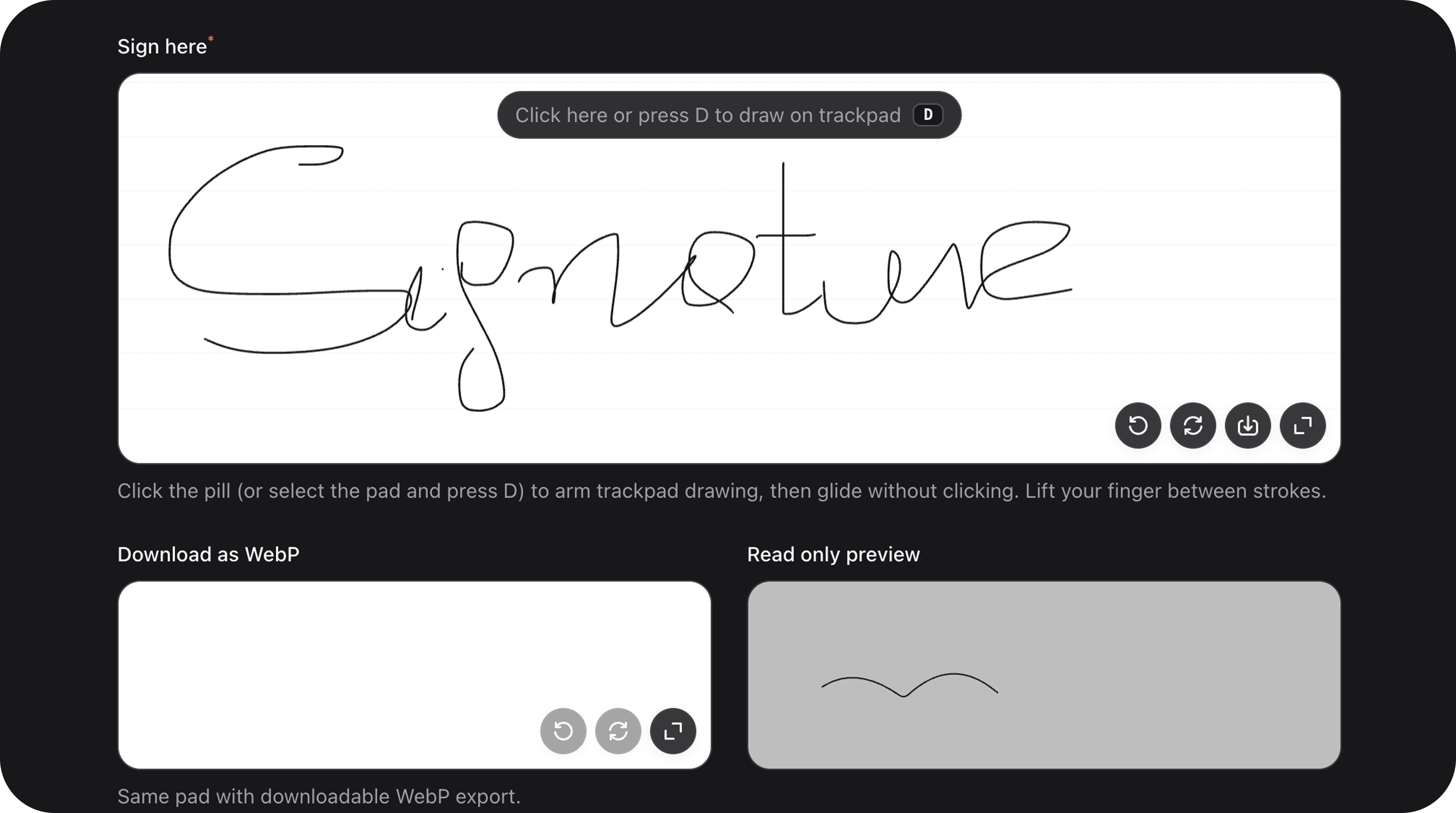

Capture handwritten signatures in Filament with drawing tools, undo and redo, document previews and configurable image or media storage.

← Back to Table of Contents

Summary

Canvas signature pad storing normalized SVG markup. Supports undo, fullscreen, optional download (SVG/WebP), and stroke validation.

Class	Bjanczak\FilamentFlexFields\Filament\Forms\Components\SignatureField
State type	string|null — normalized SVG document
FieldType	signature
Storage constants	STORE_SVG = 'svg'
Playground	signature-field slug in Flex Fields playground

Mobile, touch & stylus (enterprise)

SignatureField uses the Pointer Events API — one code path for mouse, finger, and active stylus:

Input	Support
Mobile / tablet (finger)	Yes — draw directly on the pad; touch-action: none prevents page scroll while signing
Apple Pencil / active stylus	Yes — Pointer Events with hardware pressure and the selected pen size
Mouse / trackpad	Yes — optional trackpadGlide() for Mac trackpad drawing without click-drag
Retina / HiDPI	Canvas scales with devicePixelRatio for sharp output on iPad and phones

Toolbar icon buttons expose Filament tooltips (same copy as aria-label) and use larger hit targets on coarse pointers (@media (pointer: coarse)).

Note: passive capacitive styluses (no pressure, reported as touch) behave like finger input. Only one pointer draws a stroke at a time. Hardware palm rejection depends on the device and browser.

Basic usage

use Bjanczak\FilamentFlexFields\Filament\Forms\Components\SignatureField;

SignatureField::make('signature')
    ->label('Sign here')
    ->penColor('#18181b')
    ->backgroundColor('#ffffff')
    ->required();

SignatureField::make('approval_signature')
    ->fullscreen()
    ->undoable()
    ->downloadable(SignatureField::DOWNLOAD_WEBP)
    ->downloadFilename('approval')
    ->maxSizeKb(64)
    ->minStrokes(2);

Read-only preview of an existing signature:

SignatureField::make('signed_at')
    ->default($record->signature_svg)
    ->readOnly();

State format

State is a compact SVG string produced by SignatureSvg::normalize(). null or empty string means no signature.

Use normalizeState(mixed $state): ?string to sanitize external SVG before setting state.

Legal pack & Media Ingress

Enterprise e-sign metadata via Media Ingress:

SignatureField::make('contract_signature')
    ->disk() // or ->storeToDisk()
    ->spatieSink('signatures') // optional Media copy; state stays SVG / ffstage:
    ->legalPack()
    ->timestampSeal()
    ->legalMetadataIn('signature_legal')
    ->inkTrail()
    ->pdfPreview();

On save, legalMetadataIn receives:

Key	Source
sealed_at	UTC ISO-8601 timestamp
signer_id	MediaCaptureOs::resolveLegalSignerId() or authenticated user
ip_address	Current request IP
user_agent	Current request user agent (truncated)
document_hash	Optional MediaCaptureOs::registerDocumentHashResolver()
signature_path_count	SVG path count at seal time

legalPack() requires visible ink (SignatureLegalPack::requiresInk()).

Validation

Check	Detail
required()	State must not be empty
Format	Must pass SignatureSvg::isValid()
Size	Byte size ≤ maxSizeKb() × 1024
Strokes	Path count ≥ minStrokes()

Configuration API

penColor(string|Closure $color)

Hex pen color. Default: #18181b. Must match #RGB or #RRGGBB.

SignatureField::make('field_name')
    ->penColor('#000000');

penWidth(float|Closure $width)

Stroke width in SVG units. Clamped to 0.5–12. Default: 5.6.

SignatureField::make('field_name')
    ->penWidth(2.5);

backgroundColor(string|Closure|null $color)

Canvas background hex, or null / 'transparent' for transparent. Default: #ffffff.

When left at the default, the pad follows Filament dark mode in the UI (dark zinc pad, light ink) while exported SVG/WebP still uses a white background for document output. Set an explicit hex to lock both display and export.

SignatureField::make('field_name')
    ->backgroundColor('#ffffff');

fullscreen(bool|Closure $condition = true)

Enable fullscreen drawing mode. Default: true.

SignatureField::make('field_name')
    ->fullscreen(true);

undoable(bool|Closure $condition = true)

Show undo control. Default: true.

SignatureField::make('field_name')
    ->undoable(true);

maxSizeKb(int|Closure $kilobytes)

Maximum stored SVG size in kilobytes. Default: 48.

SignatureField::make('field_name')
    ->maxSizeKb(1024);

minStrokes(int|Closure $strokes)

Minimum number of SVG paths required. Default: 1.

SignatureField::make('field_name')
    ->minStrokes(3);

viewBox(int|Closure $width, int|Closure $height)

SVG viewBox dimensions. The default is 600 × 260. Existing SVG signatures are fitted proportionally when displayed in a different pad size.

SignatureField::make('field_name')
    ->viewBox(400, 200);

smoothing(bool|Closure $condition = true)

Streamlined, variable-width ink with rounded joins and tapered ends. Pen pressure controls active stylus width; mouse and finger input use simulated pressure. Default: true.

SignatureField::make('field_name')
    ->smoothing(true);

trackpadGlide(bool|Closure $condition = true)

Hold modifier key to draw with trackpad without clicking. Default: false.

SignatureField::make('field_name')
    ->trackpadGlide(true);

trackpadGlideKey(string|Closure $key)

Single letter a–z for glide modifier. Default: d.

SignatureField::make('field_name')
    ->trackpadGlideKey('shift');

guidelines(bool|Closure $condition = true)

Show baseline guidelines on canvas. Default: false.

SignatureField::make('field_name')
    ->guidelines(true);

downloadable(string|Closure|null $format = 'svg')

Enable client-side download. Formats: SignatureField::DOWNLOAD_SVG or SignatureField::DOWNLOAD_WEBP. Pass null to disable.

SignatureField::make('field_name')
    ->downloadable('svg');

downloadFilename(string|Closure $filename)

Download file base name without extension. Default: signature.

SignatureField::make('field_name')
    ->downloadFilename('signature.svg');

webpQuality(float|Closure $quality)

WebP export quality 0.1–1. Default: 0.9.

SignatureField::make('field_name')
    ->webpQuality(0.8);

undoIcon() / clearIcon() / downloadIcon() / fullscreenIcon() / closeIcon()

Override toolbar icons (string|BackedEnum|Htmlable|Closure|null).

SignatureField::make('field_name')
    ->undoIcon('heroicon-o-arrow-path')
    ->clearIcon('heroicon-o-trash')
    ->downloadIcon('heroicon-o-arrow-down-tray')
    ->fullscreenIcon('heroicon-o-arrows-pointing-out')
    ->closeIcon('heroicon-o-x-mark');

readOnly(bool|Closure $condition = true)

Disable drawing; display existing SVG only.

SignatureField::make('field_name')
    ->readOnly(true);

Public helper methods

Method	Returns	Description
getPenColor()	string	Lowercase hex
getPenWidth()	float	Clamped width
getBackgroundColor()	string|null	Background hex or null
isFullscreenEnabled()	bool	Fullscreen available
isUndoable()	bool	Undo enabled
getMaxSizeKb()	int	Size limit
getMinStrokes()	int	Minimum paths
getViewBoxWidth() / getViewBoxHeight()	int	ViewBox size
isSmoothingEnabled()	bool	Smoothing on
isTrackpadGlideEnabled()	bool	Trackpad glide on
getTrackpadGlideKey()	string	Modifier key
isGuidelinesEnabled()	bool	Guidelines visible
getDownloadFormat()	string|null	svg, webp, or null
getDownloadFilename()	string	Download base name
getWebpQuality()	float	WebP quality
getUndoIcon() etc.	string|BackedEnum|Htmlable	Resolved icons
normalizeState(mixed $state)	string|null	Sanitized SVG
getWrapperClasses()	array<string, bool>	fff-signature-field

FlexField schema config

Config key	Maps to
pen_color	penColor()
pen_width	penWidth()
background_color	backgroundColor()
fullscreen	fullscreen()
undoable	undoable()
max_size_kb	maxSizeKb()
min_strokes	minStrokes()
smoothing	smoothing()
download_format	downloadable()
download_filename	downloadFilename()
webp_quality	webpQuality()

CSS classes

Class	Role
fff-signature-field	Root wrapper
fff-signature-field__canvas	Drawing surface
fff-signature-field__toolbar	Action buttons

Implementation notes

• Store SVG in text or longText columns; consider maxSizeKb() for DB limits.
• WebP download is generated client-side from the canvas — not stored in form state.

---

Playground

Slug: signature-field

Demo field	Shows
Default	Undo, pen color, stroke validation
Fullscreen	Fullscreen modal + guidelines
Download	SVG / WebP export options

/admin/flex-fields/signature-field — see Playground.

---

Related components

Component	When to use instead
FlexFileUpload	Upload a scanned signature image
FlexRichEditor	Rich text consent clauses above the pad
BarcodeScannerField	Capture IDs or document barcodes

---

Ink controls, redo and replay

Choose the colors and stroke widths available in the pad:

SignatureField::make('signature')
    ->penColor('#18181b')
    ->penWidth(2.5)
    ->penColors(['#18181b', '#2563eb', '#7c3aed'])
    ->penWidths([1.5, 2.5, 4])
    ->replayable();

Color and width changes affect new strokes. Undo and redo preserve each stroke’s settings. Replay animates the existing signature without changing the saved value. Use replayable(false) to hide replay. The history retains up to 60 changes. Clearing the pad animates the ink away and can be undone; reduced-motion preferences disable this effect.

Replay follows the pen points preserved in signatures exported by the field. Imported filled SVG images without pen-point history can still be displayed, edited and downloaded, but their original drawing order cannot be recovered; the replay control is disabled for those images.
