BarcodeScannerField - Filament Flex Fields

Added in v2.6.0

Summary

Barcode and QR input on the FlexTextInput shell with a Filament modal camera scanner, optional manual typing, format whitelist, and EAN/UPC checksum validation. Uses a hybrid scan engine: native BarcodeDetector when the browser supports it (Chrome/Edge), with automatic ZXing fallback. On a successful scan the field fills the input, plays a confirmation sound, and closes the modal (unless continuous() is enabled).


Class	`Bjanczak\FilamentFlexFields\Filament\Forms\Components\BarcodeScannerField`
State type	`string\|null` — scanned or typed barcode value (symbology is not stored)
Model cast	`'sku' => 'string'` (typical)
FieldType	(no dedicated FieldType mapping yet — use the class directly)
Playground	`barcode-scanner-field` slug in Flex Fields playground

Basic usage

use Bjanczak\FilamentFlexFields\Filament\Forms\Components\BarcodeScannerField;

BarcodeScannerField::make('sku')
    ->label('Product barcode')
    ->placeholder('Scan or type barcode…')
    ->required();

Filament resource example:

use Filament\Forms\Form;
use Bjanczak\FilamentFlexFields\Filament\Forms\Components\BarcodeScannerField;
use Bjanczak\FilamentFlexFields\Enums\BarcodeFormat;

public static function form(Form $form): Form
{
    return $form->schema([
        BarcodeScannerField::make('ean')
            ->label('EAN barcode')
            ->formats([BarcodeFormat::Ean13, BarcodeFormat::Ean8])
            ->validateChecksum()
            ->allowManualInput(false)
            ->helperText('Scan the product barcode with your camera.')
            ->columnSpanFull(),
    ]);
}

State format

The field stores a plain string (or null when empty). Whitespace is trimmed on hydrate/dehydrate.

// Valid EAN-13 example
'5901234123457'

// QR / Code128 example
'SKU-WAREHOUSE-42'

The detected symbology is not persisted in state. Validation uses heuristics on the string (see Format detection).

Supported formats

Configure allowed symbologies with formats() or supportedFormats(). When omitted, all built-in formats are allowed.

Enum case	Slug	Typical use	Example test value
`BarcodeFormat::Qr`	`qr`	QR codes, tickets, URLs	`https://example.com/t/abc`
`BarcodeFormat::Ean13`	`ean_13`	Retail products (EU)	`5901234123457` ✓ checksum
`BarcodeFormat::Ean8`	`ean_8`	Small retail packages	`96385074`
`BarcodeFormat::UpcA`	`upc_a`	US retail (12 digits)	`036000291452`
`BarcodeFormat::UpcE`	`upc_e`	Compressed UPC	`042526`
`BarcodeFormat::Code128`	`code_128`	Logistics, GS1-128	`ABC-128-TEST`
`BarcodeFormat::Code39`	`code_39`	Industrial, inventory	`ABC-123`
`BarcodeFormat::Itf`	`itf`	Carton / interleaved 2 of 5	`1234567890`
`BarcodeFormat::Pdf417`	`pdf417`	IDs, boarding passes	`PDF417-DEMO-VALUE`
`BarcodeFormat::DataMatrix`	`data_matrix`	Small parts, pharma	`DM-TEST-001`

Invalid checksum example (EAN-13): 5901234123450.

Limit formats to specific symbologies

Yes — pass only the formats you need. The whitelist is applied in three places:

Camera engine — BarcodeDetector / ZXing hints (what the camera tries to decode).
Client validation — rejects scans that do not match allowed patterns before accepting.
Server validation — BarcodeValidator on form submit.

EAN / UPC only (retail)

BarcodeScannerField::make('ean')
    ->formats([
        BarcodeFormat::Ean13,
        BarcodeFormat::Ean8,
        BarcodeFormat::UpcA,
        BarcodeFormat::UpcE,
    ])
    ->validateChecksum()
    ->allowManualInput(false);

QR only

BarcodeScannerField::make('ticket_code')
    ->formats([BarcodeFormat::Qr])
    ->modalHeading('Scan ticket QR code');

Warehouse — Code 128 + ITF

BarcodeScannerField::make('pallet_id')
    ->formats([BarcodeFormat::Code128, BarcodeFormat::Itf])
    ->scanDelay(500);

Dynamic whitelist (Closure)

BarcodeScannerField::make('code')
    ->formats(fn (): array => $this->record?->requires_qr_only
        ? [BarcodeFormat::Qr]
        : [BarcodeFormat::Ean13, BarcodeFormat::Code128]);

Format detection

There are two layers:

Layer	What it does
Camera (ZXing / BarcodeDetector)	Decodes the physical symbology from the image. Respects `formats()` hints.
Validation (JS + PHP)	Checks whether the string value matches allowed patterns (regex/heuristics).

Important:

By default state is a string (value only). Enable storeDetectedFormat() to persist { value, format } from the camera engine.
Server-side matching is heuristic (e.g. 13 digits → EAN-13). Ambiguous strings may match the first allowed format in priority order (EAN before QR).
BarcodeFormat::Qr is the widest pattern — avoid combining it with numeric formats if you rely on manual typing.
validateChecksum() adds real modulo-10 verification for EAN/UPC (recommended for retail).

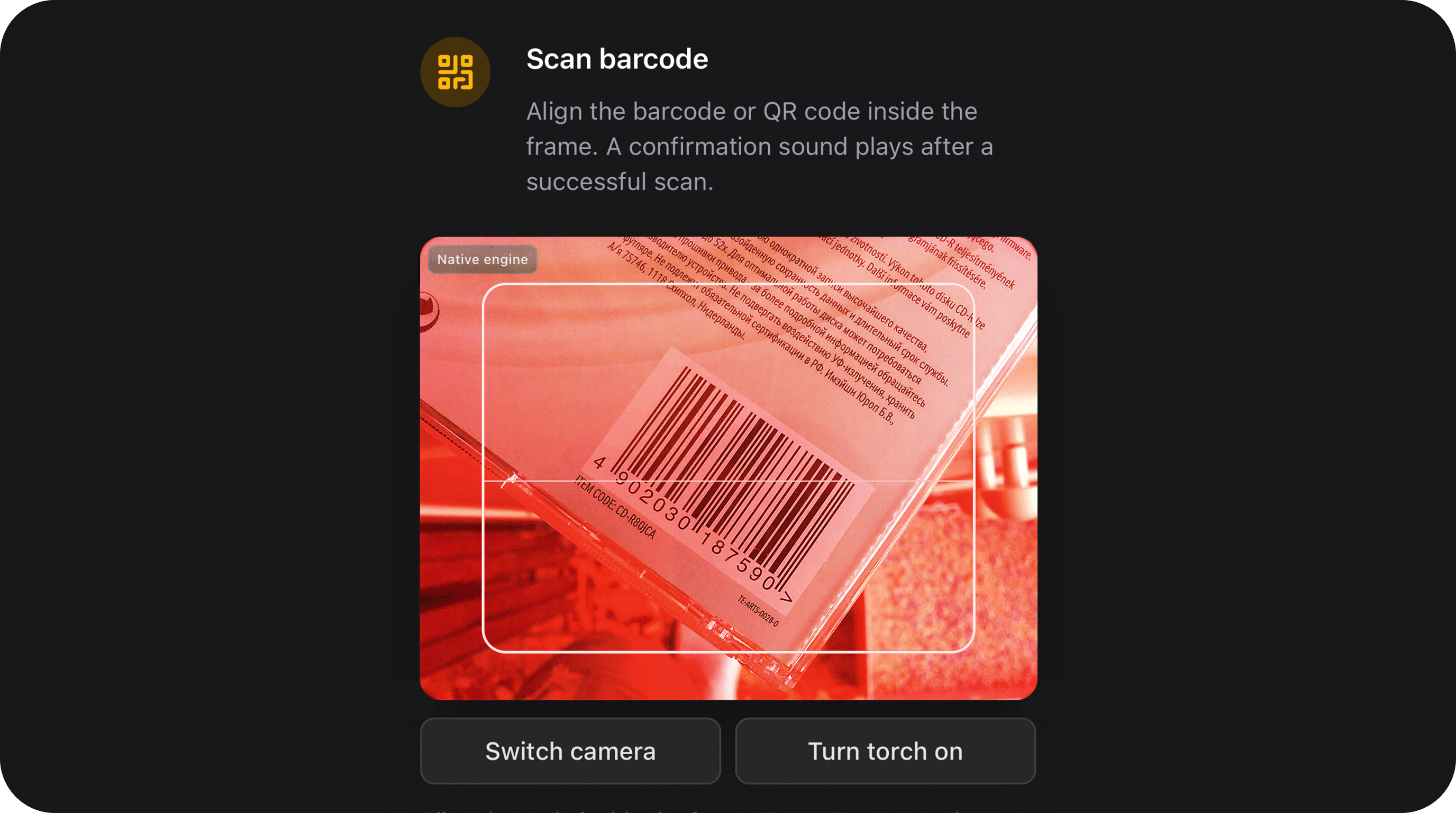

Scan UX

Default flow (without continuous()):

User clicks scan button → Filament modal opens.
Camera starts after the modal transition (badge shows Native engine on desktop Chrome/Edge or ZXing engine on mobile).
On valid scan → input filled, confirmation beep (when beepOnScan() is on), modal closes immediately.
Toolbar below the preview — Switch camera and Turn torch on/off (when supported); not overlaid on the video.
On mobile, switch camera toggles front ↔ rear via facingMode; on desktop, cycles MediaDeviceInfo when multiple inputs exist.
When pauseWhenHidden() is on (default), decoding pauses while the browser tab is in the background to save battery.

With continuous() — modal stays open for inventory-style scanning; input updates on each successful read.

Mobile / iOS notes

Topic	Behaviour
Camera preview	Body-mounted video portal + synced overlay so WebKit renders the stream inside the Filament modal
Switch camera	`environment` ↔ `user` facing toggle (recommended on phones)
Success sound	Short Web Audio tone — no lock-screen / Control Center “Now Playing” entry
Desktop sound	Bundled MP3 (`barcode-scan-success.mp3`) with synthesized fallback

Configuration API

All methods accept Closure for dynamic configuration.

Method	Description	Default
`formats()` / `supportedFormats()`	Allowed symbologies (`list<BarcodeFormat\|string>`)	all formats
`validateChecksum()`	Modulo-10 check for EAN/UPC	`false`
`continuous()`	Keep modal open after each scan	`false`
`beepOnScan()`	Play confirmation sound on success (MP3 on desktop; transient Web Audio on mobile)	`true`
`autoSubmit()`	Dispatch `barcode-auto-submit` + `form.requestSubmit()`	`false`
`cameraFacing('environment'\|'user')`	Preferred camera when no `preferredDeviceId()`	`environment`
`preferredDeviceId(?string)`	Pin a specific `MediaDeviceInfo.deviceId`	`null`
`allowCameraSwitch()`	Show switch-camera in toolbar (`facingMode` on mobile; cycle devices on desktop)	`true`
`scanDelay(int)`	Debounce duplicate reads (ms)	`750`
`scanInterval(int)`	Decode loop interval (ms), clamped 50–2000	`120`
`decodeFps(int)`	Shorthand for `scanInterval` via `1000 / fps`	—
`pauseWhenHidden()`	Pause decode when tab is hidden (Page Visibility API)	`true`
`storeDetectedFormat()`	State `{ value, format }` instead of plain string	`false`
`allowManualInput()`	Text input fallback	`true`
`scanButtonLabel()`	Scan button / `aria-label`	translated
`modalHeading()`	Filament modal title	translated
`scanIcon()`	Scan trigger icon	QR icon
`barcodeRule(Closure\|string)`	Extra Filament validation	none
`variant()`	`primary`, `secondary`, `soft`, `flat`, `ghost`	`primary`
`size()`	`sm`, `md`, `lg`	`md`

`placeholder(string|Closure|null $placeholder)`

Inherited from Filament HasPlaceholder. Default translation: filament-flex-fields::default.barcode_scanner.placeholder.

BarcodeScannerField::make('sku')->placeholder('Scan or type EAN…');

`readOnly(bool|Closure $condition = true)` / `disabled(bool|Closure $condition = true)`

Inherited from Filament CanBeReadOnly. Read-only keeps the scanned value visible but blocks manual edits and opening the scanner modal.

BarcodeScannerField::make('registered_sku')
    ->default(fn ($record) => $record->sku)
    ->readOnly();

`focusOutline(bool|Closure $condition = true)`

Inherited from HasFieldFocusOutline. Default: false. When true, shows the shared focus ring on the FlexTextInput shell.

BarcodeScannerField::make('sku')->focusOutline();

Public helper methods

Method	Returns	Description
`getBeepUrl()`	`string`	URL for desktop confirmation MP3
`getAlpineConfiguration()`	`array`	Full config passed to Alpine (`supportedFormats`, labels, etc.)
`getWrapperClasses()`	`array<string, bool>`	Root CSS class map

Standard Filament field methods (required(), rule(), unique(), live(), helperText(), …) work as usual.

Model & persistence

// Migration
$table->string('sku')->nullable()->unique();

// Model — plain string, no special cast
protected $fillable = ['sku'];

BarcodeScannerField::make('sku')
    ->default(fn (?Product $record): ?string => $record?->sku)
    ->formats([BarcodeFormat::Ean13])
    ->validateChecksum();

When storeDetectedFormat() is enabled, cast or accessor handling may be needed if you persist the full { value, format } array — the default string column stores only the barcode value.

Recipes

Retail shelf — EAN-13 with checksum, scan-only

BarcodeScannerField::make('barcode')
    ->formats([BarcodeFormat::Ean13])
    ->validateChecksum()
    ->allowManualInput(false)
    ->required();

Inventory loop — continuous + beep

BarcodeScannerField::make('scan_buffer')
    ->continuous()
    ->beepOnScan()
    ->scanDelay(400)
    ->formats([BarcodeFormat::Code128, BarcodeFormat::Code39]);

Auto-submit lookup form

BarcodeScannerField::make('lookup_code')
    ->autoSubmit()
    ->live()
    ->afterStateUpdated(fn (?string $state) => $this->lookupProduct($state));

Laptop with multiple cameras + slower decode

BarcodeScannerField::make('asset_tag')
    ->allowCameraSwitch()
    ->decodeFps(5) // ~200 ms between attempts
    ->pauseWhenHidden();

Persist symbology from camera

BarcodeScannerField::make('scan')
    ->storeDetectedFormat()
    ->formats([BarcodeFormat::Ean13, BarcodeFormat::Qr]);

// State: ['value' => '5901234123457', 'format' => 'ean_13']
// Input still shows value only; use $get('scan.format') or state array in callbacks.

Custom validation + uniqueness

BarcodeScannerField::make('sku')
    ->formats([BarcodeFormat::Code128])
    ->barcodeRule('regex:/^[A-Z0-9-]{6,32}$/')
    ->unique('products', 'sku')
    ->validationMessages([
        'unique' => 'This SKU is already registered.',
    ]);

Events

Alpine dispatches browser events on successful scans:

Event	Detail
`barcode-scanned`	`{ value, format, engine, statePath }` — `format` / `engine` from camera when available
`barcode-auto-submit`	`{ value, statePath }` — when `autoSubmit()` is enabled

Listen in a parent Alpine scope or Livewire hook as needed.

Validation

Built-in rules run through BarcodeValidator:

Check	Message key
Empty required field	Laravel `validation.required`
Value does not match any allowed format	`barcode_scanner.validation.unrecognized`
EAN/UPC checksum failure	`barcode_scanner.validation.checksum`
Custom `barcodeRule()`	your message

Client-side validation mirrors server rules before accepting a camera scan (invalid scans show an inline error in the modal without closing it).

Accessibility

Scan button: keyboard operable, aria-haspopup="dialog".
Modal: native Filament <x-filament::modal> — focus trap, Escape to close, header close button.
Loading state: aria-live="polite" while camera starts.
Errors: role="alert" in modal body.
@media (prefers-reduced-motion: reduce) disables scan-line animation and spinner.

CSS classes

Class	Purpose
`fff-barcode-scanner`	Root wrapper
`fff-barcode-scanner-field`	Field wrapper (via `getWrapperClasses`)
`fff-barcode-scanner__scan-btn`	Scan trigger in input suffix
`fff-barcode-scanner__viewport`	Camera preview shell (portal-synced on mobile)
`fff-barcode-scanner__reticle`	Scan frame + animated scan line
`fff-barcode-scanner__engine-badge`	Native / ZXing engine indicator (compact, top-left)
`fff-barcode-scanner__toolbar`	Row below preview — switch camera & torch
`fff-barcode-scanner__switch-camera-btn`	Switch camera control
`fff-barcode-scanner__torch-btn`	Torch toggle control
`fff-barcode-scanner-modal`	Filament modal root modifier

Stylesheet: barcode-scanner-field (lazy). Depends on flex-text-input.

Assets

Asset	Loading
CSS `barcode-scanner-field`	Lazy per field
Alpine `barcode-scanner-field`	Lazy per field
ZXing chunk	Dynamic import when camera opens
MP3 `barcode-scan-success.mp3`	Published to `public/.../audio/...`

Rebuild after JS/CSS changes:

cd packages/filament-flex-fields
npm install
npm run build

Playground

Slug: barcode-scanner-field

Demo field	Shows
`barcode__default`	Default + prefilled valid EAN-13
`barcode__ean_only`	EAN/UPC whitelist + checksum
`barcode__continuous`	Continuous inventory mode + beep
`barcode__checksum`	EAN-13 only + checksum enforcement
`barcode__manual_only`	Scan-only (manual input disabled)

Testing

php artisan test --compact packages/filament-flex-fields/tests/Unit/BarcodeScannerFieldTest.php
php artisan test --compact packages/filament-flex-fields/tests/Feature/BarcodeScannerFieldRenderTest.php
node --test packages/filament-flex-fields/tests/js/barcode-scanner-field.test.mjs

Use playground values 5901234123457 (valid EAN-13) and 5901234123450 (invalid checksum) to verify validation.

​Summary

​Basic usage

​State format

​Supported formats

​Limit formats to specific symbologies

​EAN / UPC only (retail)

​QR only

​Warehouse — Code 128 + ITF

​Dynamic whitelist (Closure)

​Format detection

​Scan UX

​Mobile / iOS notes

​Configuration API

​placeholder(string|Closure|null $placeholder)

​readOnly(bool|Closure $condition = true) / disabled(bool|Closure $condition = true)

​focusOutline(bool|Closure $condition = true)

​Public helper methods

​Model & persistence

​Recipes

​Retail shelf — EAN-13 with checksum, scan-only

​Inventory loop — continuous + beep

​Auto-submit lookup form

​Laptop with multiple cameras + slower decode

​Persist symbology from camera

​Custom validation + uniqueness

​Events

​Validation

​Accessibility

​CSS classes

​Assets

​Playground

​Testing
