SegmentControl

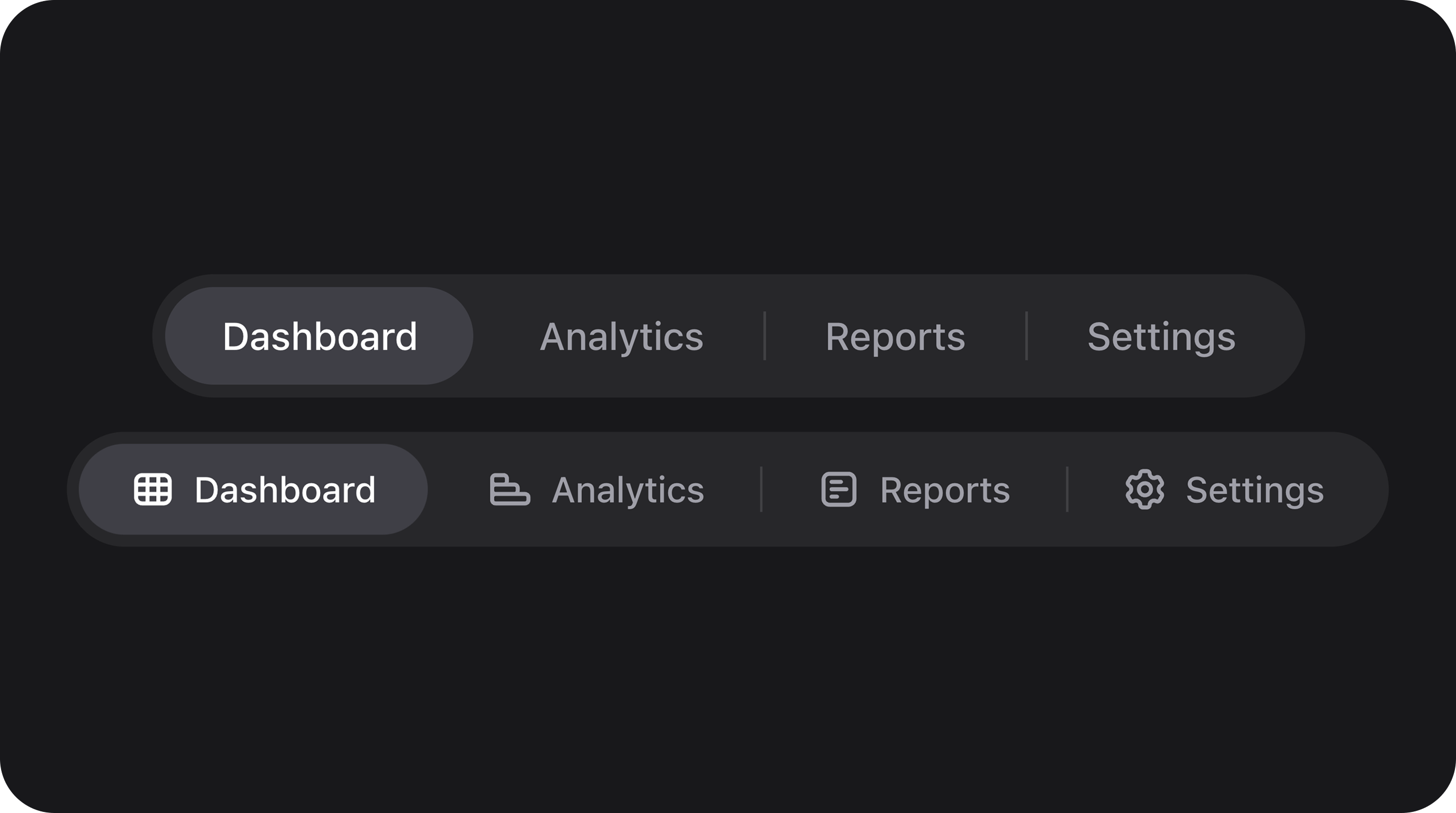

Single-select segmented control with sliding indicators, icons, and animated label expansion.

← Back to Table of Contents

Summary

Single-select segmented control — alternative to radio lists or selects, with sliding animations, ghost variants, and optional icon-only modes.

Class	Bjanczak\FilamentFlexFields\Filament\Forms\Components\SegmentControl
State type	string|int — one option key
Model cast	'status' => 'string' · 'type' => 'integer'
FieldType	segment_control
Playground	segment-control slug in Flex Fields playground

---

Basic usage

Standard segments

use Bjanczak\FilamentFlexFields\Filament\Forms\Components\SegmentControl;

SegmentControl::make('status')
    ->options([
        'draft' => 'Draft',
        'review' => 'In Review',
        'published' => 'Published',
    ]);

Ghost variant with icons and full width

SegmentControl::make('alignment')
    ->label('Text Alignment')
    ->options([
        'left' => 'Left',
        'center' => [
            'label' => 'Center',
            'icon' => 'heroicon-o-bars-3',
            'tooltip' => 'Centered text',
        ],
        'right' => 'Right',
    ])
    ->icons([
        'left' => 'heroicon-o-bars-3-bottom-left',
        'right' => 'heroicon-o-bars-3-bottom-right',
    ])
    ->variant('ghost')
    ->fullWidth();

---

State & validation

Stored value

State is the option key from options().

$record->status; // string|null — e.g. 'published'

Validation rules (built-in)

Rule	When
nullable	Always (unless required())
Rule::in(...)	Value must match a configured option key
required	When ->required()

---

Configuration API

All methods accept Closure unless noted.

Method	Type	Default	Description
options(array|Closure $options)	Setup	[]	Option keys => labels or rich arrays (label, icon, disabled, tooltip).
icons(array|Closure $icons)	Setup	[]	Map of option key => Heroicon name.
disabledOptions(array|Closure $keys)	Setup	[]	Keys that cannot be selected.
variant(string|Closure $variant)	Setup	'default'	Visual variant: default (filled track), ghost (transparent track).
color(string|Closure|null $color)	Setup	null	Selection accent color. Defaults to primary for ghost.
separators(bool|Closure $condition = true)	Setup	true	Vertical dividers between segments.
fullWidth(bool|Closure $condition = true)	Setup	false	Stretch the control to full field width.
iconOnly(bool|Closure $condition = true)	Setup	false	Hide labels; show icons only.
expandSelectedLabel(bool|Closure $condition = true)	Setup	false	Animate the selected segment to a wider width.
size(string|ControlSize|Closure $size)	Setup	'md'	Control size: sm, md, lg.

Public helper methods

Method	Returns	Description
getOptionKeys()	array<int, string|int>	Valid keys for validation.
getNormalizedOptions()	array	Resolved options with metadata.
getVariant()	string	Current variant.
getColor()	?string	Resolved accent color.

---

Real-world examples

Responsive device selector (Icon only)

SegmentControl::make('preview_device')
    ->iconOnly()
    ->options([
        'desktop' => ['icon' => 'heroicon-o-computer-desktop', 'label' => 'Desktop'],
        'tablet' => ['icon' => 'heroicon-o-device-tablet', 'label' => 'Tablet'],
        'phone' => ['icon' => 'heroicon-o-device-phone-mobile', 'label' => 'Phone'],
    ])
    ->default('desktop');

Date range selector (Ghost variant)

SegmentControl::make('date_range')
    ->variant('ghost')
    ->separators(false)
    ->options([
        '1w' => '1W',
        '4w' => '4W',
        '1y' => '1Y',
        'all' => 'ALL',
    ])
    ->default('4w');

---

Playground

/admin/flex-fields/segment-control

See Playground for setup.

---

Related components

Component	When to use instead
SegmentTabs	When segments should switch between different form schemas.
NpsField	Survey-specific scales (0–10) with survey semantics.
ChoiceCards	Larger, card-style selection surfaces.

---

CSS classes (reference)

Class	Role
fff-segment-control	Root wrapper
fff-segment-control--variant-{default|ghost}	Visual variant
fff-segment-control--{sm|md|lg}	Size variant
fff-segment-control--full-width	Full width modifier
fff-segment-track	Options container
fff-segment-indicator	Animated selection background
fff-segment-item	Individual segment wrapper
fff-segment-item--selected	Active segment state
fff-segment-item--disabled	Disabled segment state

Shared rendering and overflow

Control, Tabs and locale tabs use one renderer and one lifecycle. The SSR strip is styled before Alpine starts. A constrained field host enables automatic horizontal scrolling, fading edges and chevrons when options exceed available width. Selection is scrolled into view, including RTL layouts. fullWidth() distributes choices instead. Arrow keys, Home and End skip disabled choices. No duplicated template or observer is required when using the field inside CompositeField.
